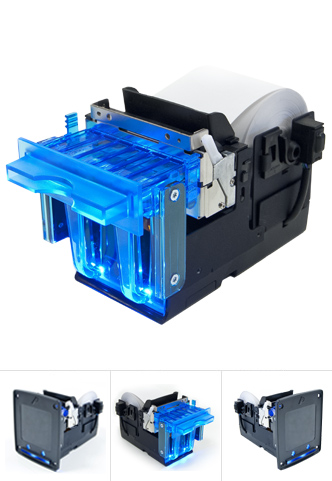

CR-158 Printer

CR-158 Printer

The CR-158 is a compact coupon printer, available with two different bezel options, to suit both the European and US markets. The unit's high quality Seiko print mechanism is field proven and free ticket template software allows unlimited branding opportunities.

Features

• Fast print to present speed
• Includes user ticket template design software
• Full or partial cut function
• Attractive bezel options

Technical Specification

Power
Requirements: 12 - 24 V
Standby: 100 mA
Running: 2 A
Peak: 4.8 A at 12 V

Bezel Options
Euro bezel
US bezel

Paper Type
Thermal, paper roll max. size:   58 x 70 mm, 12.7 mm core

Protocols
eSSP, POG, Pulse



Interface
USB
Open collector

True RS232

Sensors
head temperature, paper present, cutter home, paper level

Weight
0.6 kg

Dimensions
120 x 100 x 148 mm

---

Download documentation
